CGW系列船用排污泵
一、概述General
CGW系列船用排污泵系电动直立式管道型单通道叶轮离心排放泵(简称排污泵)。该系列泵适用于输送含有直径为泵口径1/3的固体物块和含有长度为泵口径5倍的纤维材料,温度在85℃以下的生活污水、工业废水、油污水、淡水或海水。是污水处理设备的配套泵。
CGW Series marine sludge discharge pump is a moror-driven uprightness meatussingle-channel impeller centrifugal drainage pump(referrde to as “sump pump”). The pumps of this series are suitable for transferring sewage, industrial waste water, oily water, fresh water of sea water at a temperature below 85℃, containing solids with a diameter up to one third of that of the pump port, and fibers with a length up to five times of that of the ports. They are the best choice for use in conjunction with waster water treatment plants.

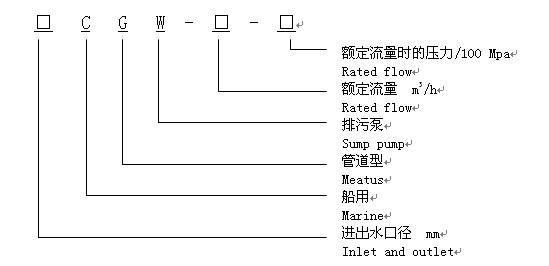

二、型号说明:Type meaning
三、主要技术性能参数:Main technical parameter
型号 Type | 流量 | 压力 | 电机功率 | 进口管径 | 出口管径 |
20CGW-3-6 | 3 | 0.06 | 0.37 | 20 | 20 |
25CGW-2-4 | 2 | 0.04 | 0.25 | 25 | 25 |
25CGW-5-10 | 5 | 0.10 | 0.55 | 25 | 25 |
25CGW-10-15 | 10 | 0.15 | 1.1 | 25 | 25 |
32CGW-8-15 | 8 | 0.15 | 1.1 | 32 | 32 |
32CGW-10-25 | 10 | 0.20 | 1.5 | 32 | 32 |
40CGW-10-15 | 10 | 0.15 | 1.1 | 40 | 40 |
40CGW-15-25 | 15 | 0.25 | 2.2 | 40 | 40 |
