CYBW型自润滑气泵
一、概述
CYBW系列船用自润滑气泵具有体积小、重量轻、能耗省,排气纯净无油渍污染等特点。符合船用配套要求。
CYBW系列船用自润滑气泵是为船用污水处理装置配套而设计,同时适用于印刷机械、包装、吹塑、灯具等行业配套使用。
CYBW Series marine air pump is the self lubricating Sliding-vane air pump,which has the features of smaill size, lighe weight, energy-saving,and clean exhausted air with no oil poilution,etc. It can meet the requirement for marine uses.CYBW series marine air pump is designed specially as the auxiliary equipment for marine sanitary sewage disposal system, it is also applicable to the industries of printing machinery packing, blow molding, and light fittings etc.

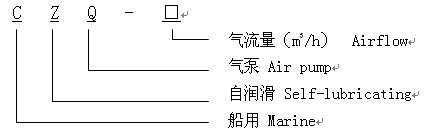

二、型号说明:Type meaning
三、主要技术性能参数:Main technical parameter
序号 | 型号 | 流量 | 排气压力 | 转速 | 功率 | 接管外径Inlet piping Dia | 重量 |
1 | CYBW-6 | 6 | 60 | 1400 | 0.25 | 16 | 13 |
2 | CYBW-10 | 10 | 0.37 | 16 | 14 | ||
3 | CYBW-15 | 15 | 0.55 | 20 | 16 | ||
4 | CYBW-20 | 20 | 0.75 | 20 | 18 | ||
5 | CYBW-25 | 25 | 1.1 | 27 | 34 | ||
6 | CYBW-40 | 40 | 1.5 | 27 | 38 |
